SALE - Karrman Diff Drop and UCA Kit - Mitsubishi Triton ML,MN,MQ,MR/Challenger PB-PC/Pajero Sport

The Karrman Diff Drop and UCA kit has been extensively tested and designed to extract the most performance out of your Mitsubishi Triton/Pajero platform. It corrects the CV angle by dropping the differential and position of the driveline to reduce the damage of drivetrain components.

This kit achieves the biggest diff drop on the market and when setup correctly, achieves the largest ground clearance.

This isn't your average, basic knock-off kit; but rather a patented design that is NOT the same as similar "knock-off" diff drop kits on the market. The designs are totally different; the bolt locations are different and it may seem "identical" in photos of off-brand kits. This kit has undergone FEA (Finite element analysis), tested to 4 times stronger than original parts and has been designed to meet structural standards of conditions of Australian roads.

This kit is Engineerable AUS-WIDE - Please contact FUTURE CUSTOMS using CONTACT form if you wish to get your Ute certified in QLD above 2 inches in lift.

These suit the following Vehicles:

• Mitsubishi Triton M/MR (2016-current)
• Mitsubishi Pajero Sport (2016-current)
• Mitsubishi Triton ML (2006-2010)
• Mitsubishi Triton MN (2010-2016)
• Mitsubishi Challenger PB (2008-2016)
• Mitsubishi Challenger PC (2008-2016)

2-4 inch suspension lift is achievable.

All kits are inspected before sale by a VASS approved engineer.

VASS approved engineering report completed. A copy of this report can be requested by a VASS engineer who is in the process of certifying a vehicle with this kit.

Suspension travel vs stock

Suspension travel gained in drop 85mm

Suspension travel restricted up 38mm

Center axle relocation drop 32mm

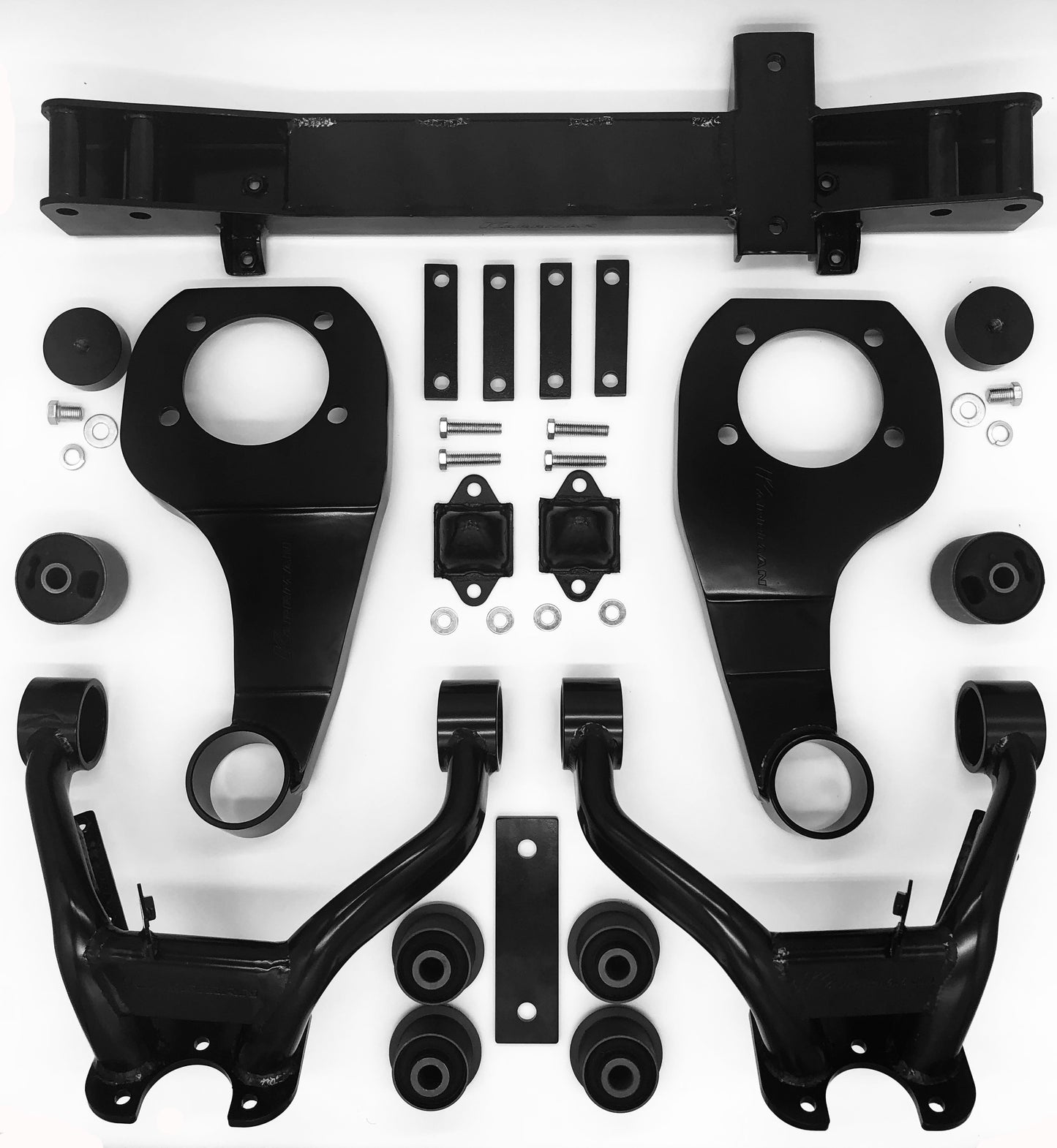

Parts Supplied:

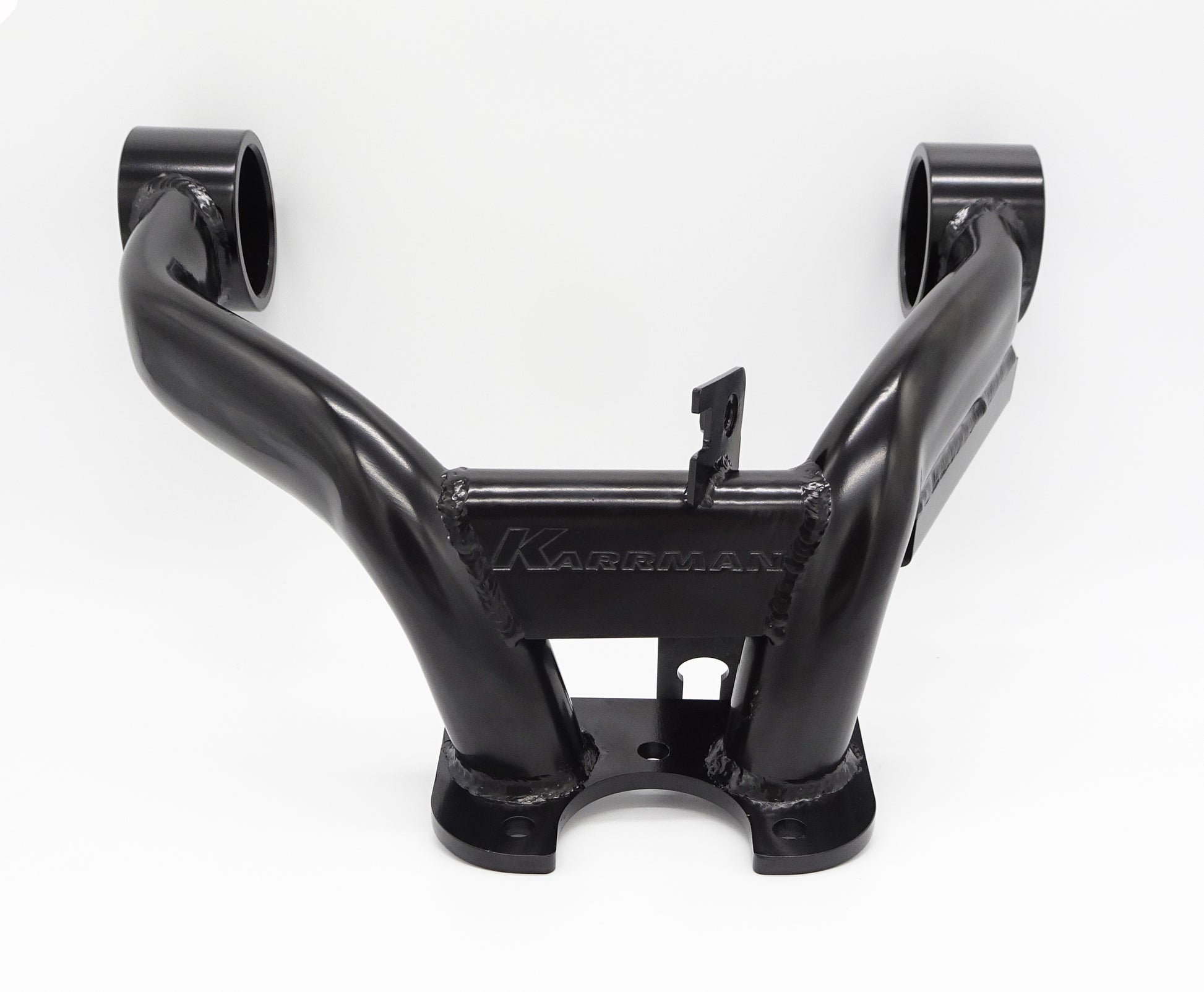

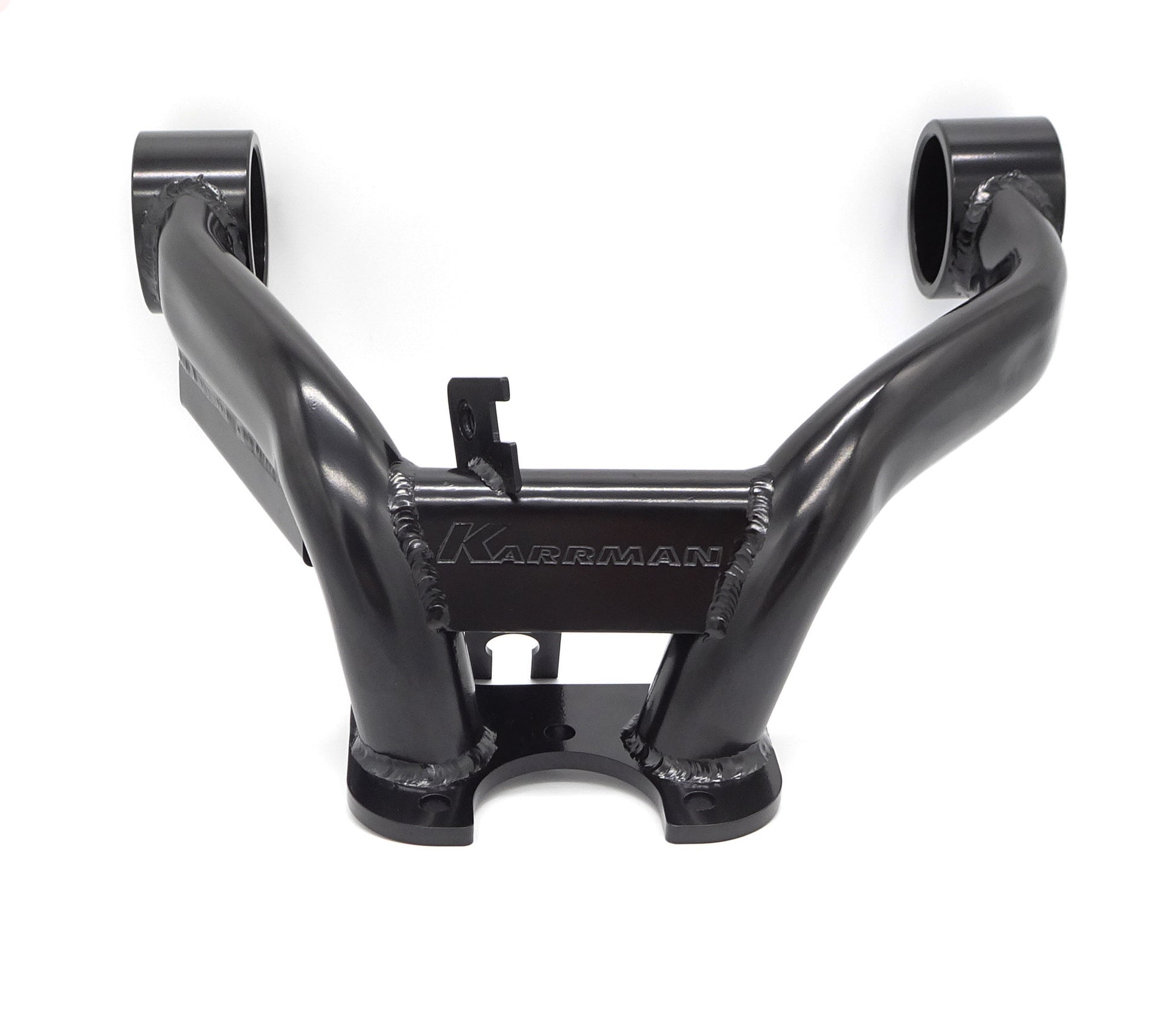

• 2x UCA's

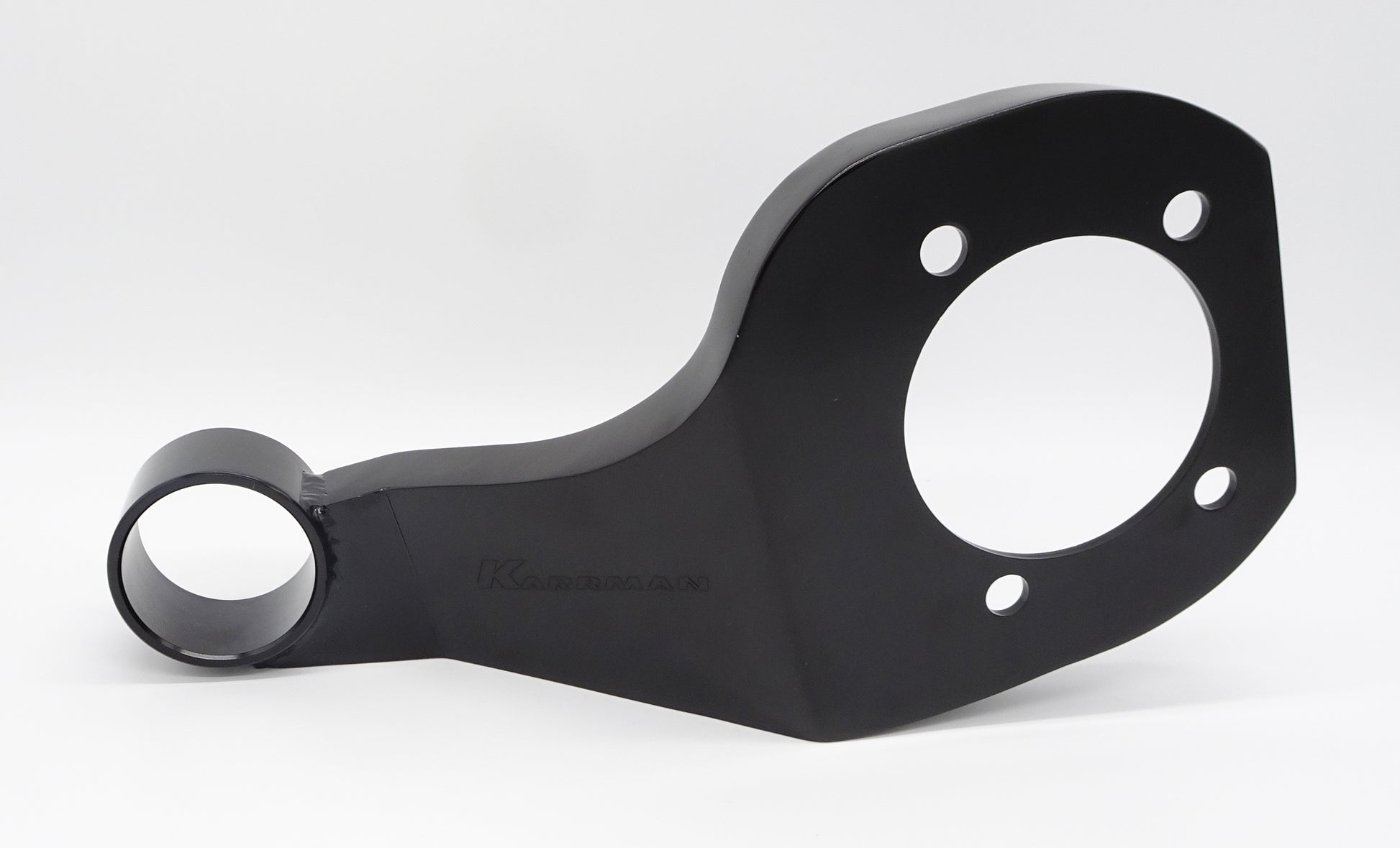

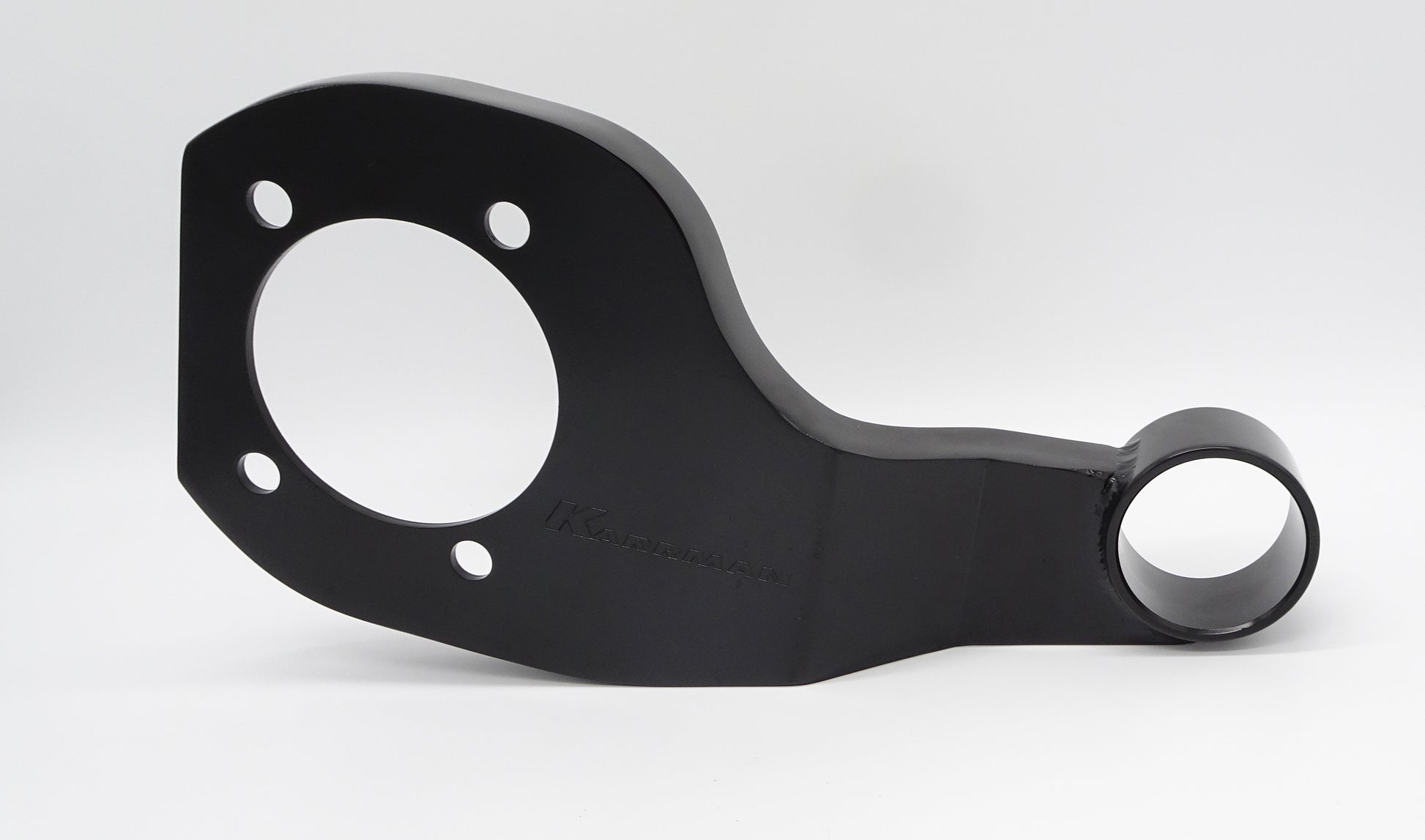

• 2x Diff brackets

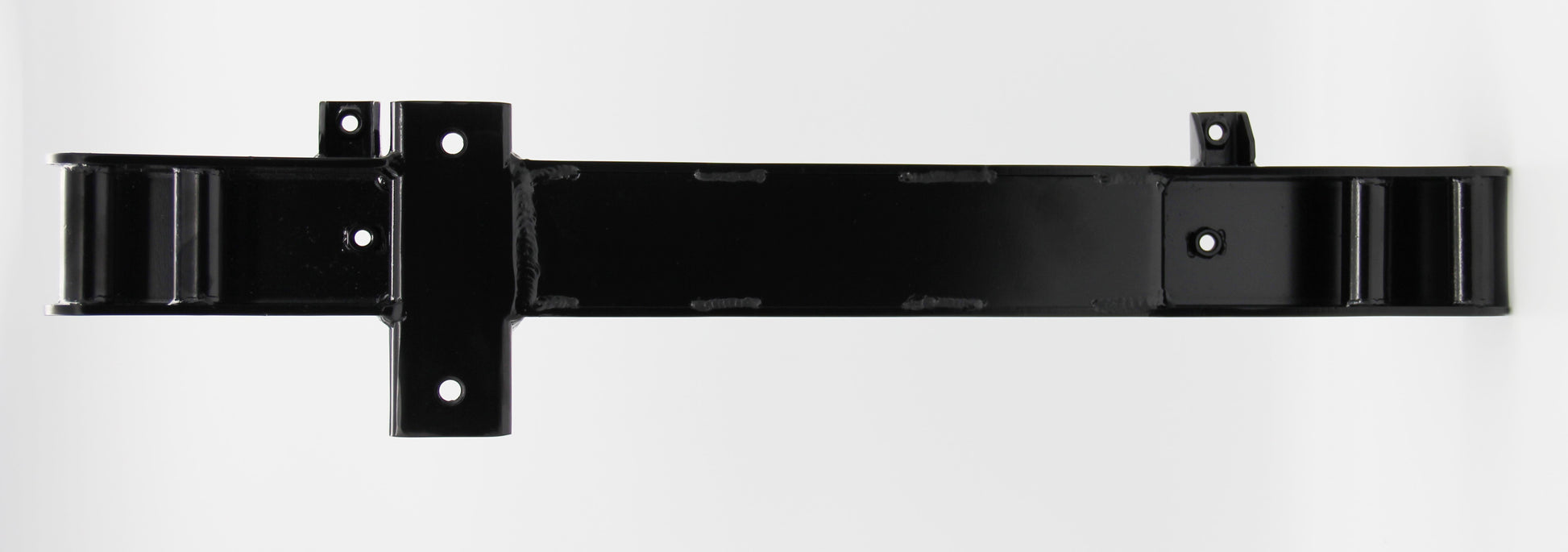

• 1x Cross-member
• 4x UCA bush
• 2x Diff bracket bush
• 2x 6mm UCA spacer
• 2x 10mm UCA spacer
• 2x UCA bump stop
• 2x 40mm m8 bolt
• 2x 50mm m8 bolt +washers
• 2x 22mm lower bump stop spacer
• 2x 20mm m8 bolt with washer
